Product Information
Tech Specs & Customization
Product SKUs
- SuperServer SYS-521GE-TNRT
- SuperServer SYS-521GE-TNRT-G1 Gold Series version with pre-configured components
Processor
- Dual Socket E (LGA-4677)
- 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
- Up to 64C/128T; Up to 320MB Cache per CPU
- Supports up to 350W TDP CPUs (Air Cooled)
- Supports up to 385W TDP CPUs (Liquid Cooled)
GPU
- Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs
- NVIDIA PCIe: H100 NVL, RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), RTX 6000 Ada Generation, L40S, L4
- PCIe 5.0 x16 Switch Dual-Root interconnect
- NVIDIA® NVLink® Bridge (optional)
- NVIDIA Certified
System Memory
- 32 DIMM slots
- Up to 4TB 5600MT/s ECC DDR5 RDIMM (1DPC)
- Up to 8TB 4400MT/s ECC DDR5 RDIMM (2DPC)
- Memory Voltage: 1.1V
On-Board Devices
- Chipset: Intel® C741
- Network Connectivity: 2 RJ45 10GbE with Intel® X710-AT2
- Video: 1 VGA port
- BIOS Type: AMI 32MB SPI Flash EEPROM
Management
- SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA)
- Power-on mode for AC power recovery
- ACPI Power Management
Security
- TPM 2.0
- Silicon Root of Trust – NIST 800-193 Compliant
- Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
- PC Health Monitoring
- CPU Monitoring: Cores, Chipset Voltages, Memory
- Fans with tachometer and PWM control
- Temperature Monitoring for CPU & chassis environment
Chassis
- Form Factor: 5U Rackmount (CSE-528GTS-R5K40P)
- Dimensions: 8.75" H x 17.2" W x 31" D
- Package Size: 17.32" (H) x 28.34" (W) x 42.51" (D)
- Weight: Gross 100 lbs (45.3 kg), Net 65.5 lbs (29.7 kg)
- Color: Black Front & Silver Body
- LEDs: HDD, Network, Power, Overheat & Power Fail indicators
- Buttons: Power On/Off, System Reset
Expansion Slots
- 13 PCIe 5.0 x16 FHFL slots

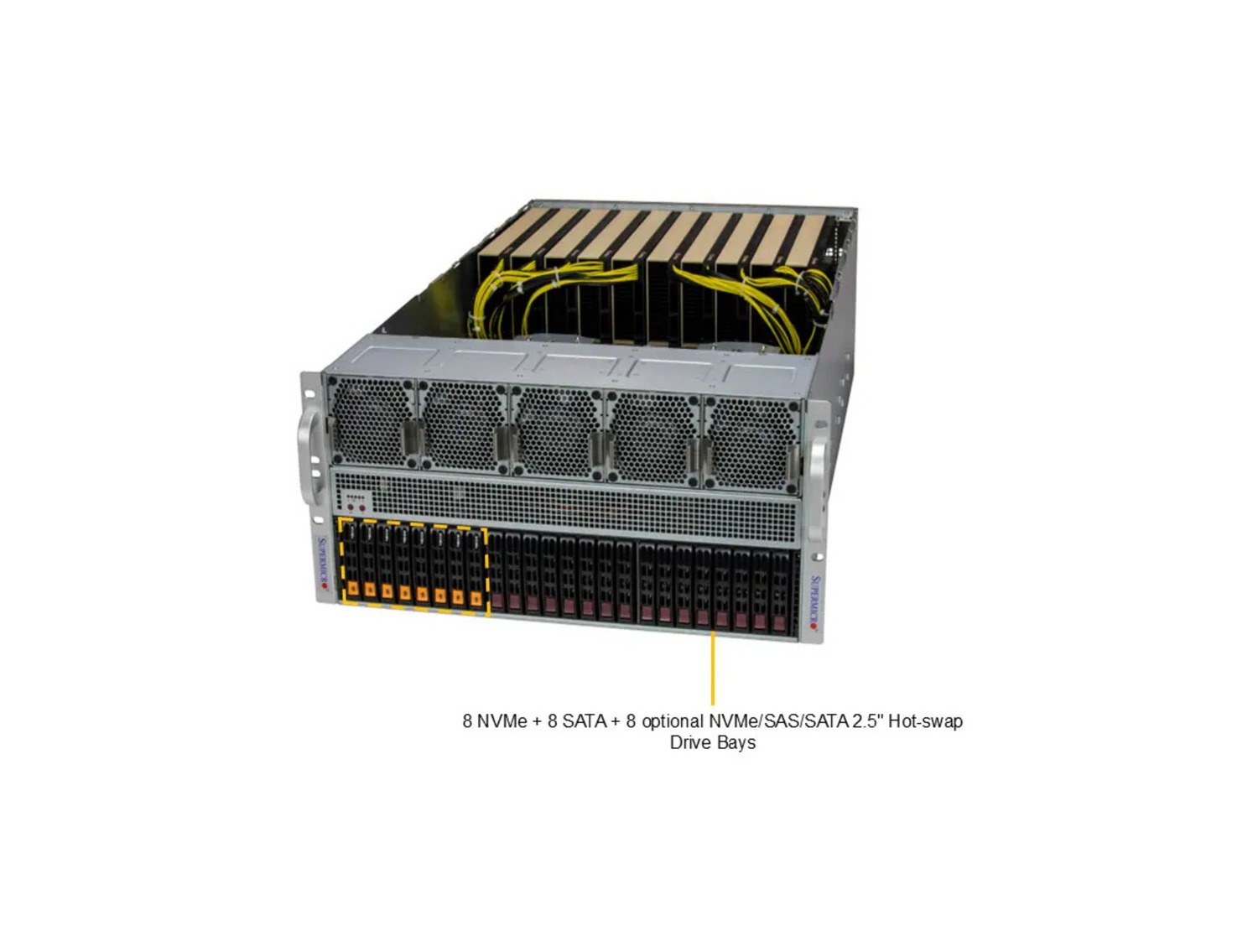

Drive Bays / Storage
- Default: 16 bays (8 x 2.5" NVMe + 8 x 2.5" SATA hot-swap)
- Option A: 24 bays (16 x 2.5" NVMe + 8 x 2.5" SATA hot-swap)
- 2 x M.2 NVMe slots (M-key)
System Cooling
- Up to 10 heavy duty fans with optimal speed control
- 1 Air Shroud
- Optional Direct to Chip (D2C) Liquid Cooling
Power Supply
- 4 x 2700W Redundant Titanium Level (96%) power supplies
- Input: 200-240Vac / 50-60Hz or 240Vdc (CQC only)
- +12V Max: 225A
- +12V SB Max: 4A
Operating Environment
- Operating Temp: 10°C to 35°C (50°F to 95°F)
- Non-operating Temp: -40°C to 60°C (-40°F to 140°F)
- Operating Humidity: 8% to 90% (non-condensing)
- Non-operating Humidity: 5% to 95% (non-condensing)
