| Product SKU |

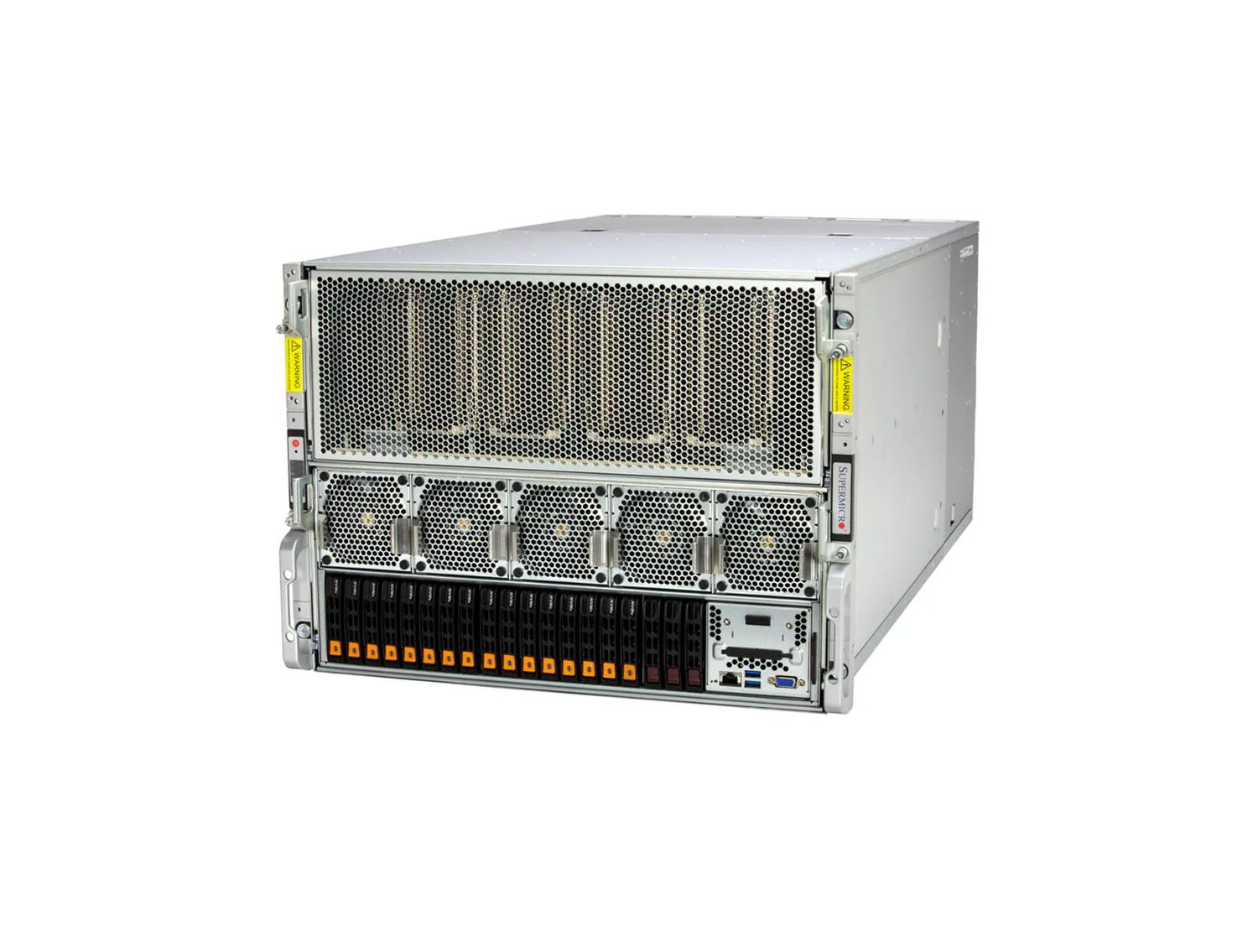

SuperServer SYS-821GE-TNHR |
| Motherboard |
Super X13DEG-OAD |
| Processor |
- Dual Socket E (LGA-4677) |
| |
- 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| |
- Core Count: Up to 64C/128T; Up to 320MB Cache per CPU |
| |
- Supports up to 350W TDP CPUs (Air Cooled) |
| |
- Supports up to 385W TDP CPUs (Liquid Cooled) |
| GPU |
- Max GPU Count: Up to 8 onboard GPU(s) |
| |
- Supported GPU: NVIDIA SXM (HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)) |
| |
- CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect |
| |
- GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
| System Memory |
- Slot Count: 32 DIMM slots |
| |
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| |
- Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| |
- Memory Voltage: 1.1V |
| On-Board Devices |
- Chipset: Intel® C741 |
| |
- Network Connectivity: |
| |
- 2 RJ45 10GbE with Intel® X550-AT2 (optional) |
| |
- 2 SFP28 25GbE with Broadcom® BCM57414 (optional) |
| |
- 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
| Input / Output |
- Video: 1 VGA port |
| System BIOS |
AMI 32MB SPI Flash EEPROM |
| Management Software |
- SuperCloud Composer |
| |
- Supermicro Server Manager (SSM) |
| |
- Supermicro Update Manager (SUM) |
| |
- Supermicro SuperDoctor® 5 (SD5) |
| |
- Super Diagnostics Offline (SDO) |
| |
- Supermicro Thin-Agent Service (TAS) |
| |
- SuperServer Automation Assistant (SAA) |
| Power Configurations |
- Power-on mode for AC power recovery |
| |
- ACPI Power Management |
| Security |
- Trusted Platform Module (TPM) 2.0 |
| |
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| |
- Cryptographically Signed Firmware |
| |
- Secure Boot |
| |
- Secure Firmware Updates |
| |
- Automatic Firmware Recovery |
| |
- Supply Chain Security: Remote Attestation |
| |
- Runtime BMC Protections |
| |
- System Lockdown |
| PC Health Monitoring |
- Monitors for CPU Cores, Chipset Voltages, Memory |
| |
- 8+4 Phase-switching voltage regulator |
| |
- Fans with tachometer monitoring |
| |
- Status monitor for speed control |
| |
- Pulse Width Modulated (PWM) fan connectors |
| |
- Temperature monitoring for CPU and chassis environment |
| |
- Thermal Control for fan connectors |
| Chassis |
- Form Factor: 8U Rackmount |
| |
- Model: CSE-GP801TS |
| Dimensions & Weight |
- Height: 14" (355.6 mm) |
| |
- Width: 17.2" (437 mm) |
| |
- Depth: 33.2" (843.28 mm) |
| |
- Package: 29.5" (H) x 27.5" (W) x 51.2" (D) |
| |
- Gross Weight: 225 lbs (102.1 kg) |
| |
- Net Weight: 166 lbs (75.3 kg) |
| |
- Available Color: Black front & silver body |
| Front Panel |
- LED: Hard drive activity LED, Network activity LEDs, Power status LED, System Overheat & Power Fail LED |
| |
- Buttons: Power On/Off button, System Reset button |
| Expansion Slots |
- PCI-Express (PCIe) Configuration: |
| |
- Default: 8 PCIe 5.0 x16 LP slot(s), 2 PCIe 5.0 x16 FHHL slot(s) |
| Drive Bays / Storage |
- Drive Bays Configuration: |
| |
- Default: Total 15 bay(s): 12 front hot-swap 2.5" NVMe drive bay(s), 3 front hot-swap 2.5" SATA drive bay(s) |
| |
- Option A: Total 19 bay(s): 12 front hot-swap 2.5" NVMe drive bay(s), 4 front hot-swap 2.5" NVMe* drive bay(s), 3 front hot-swap 2.5" SATA drive bay(s) |
| |
- M.2: 2 M.2 NVMe slot(s) (M-key) |
| System Cooling |
- 10 heavy duty fans with optimal fan speed control |
| |
- Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply |
- 6x 3000W Redundant Titanium Level (96%) power supplies |
| |
- Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm |
| |
- AC Input: 3000W: 0240Vdc / 50-60Hz (for CQC only), 2880W: 200-207Vac / 50-60Hz, 3000W: 207-240Vac / 50-60Hz |
| |
- +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) |
| |
- 12V SB: Max: 3A / Min: 0A |
| |
- Output Type: Backplanes (gold finger) |
| Operating Environment |
- Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| |
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| |
- Operating Relative Humidity: 8% to 90% (non-condensing) |
| |
- Non-operating Relative Humidity: 5% to 95% (non-condensing) |
