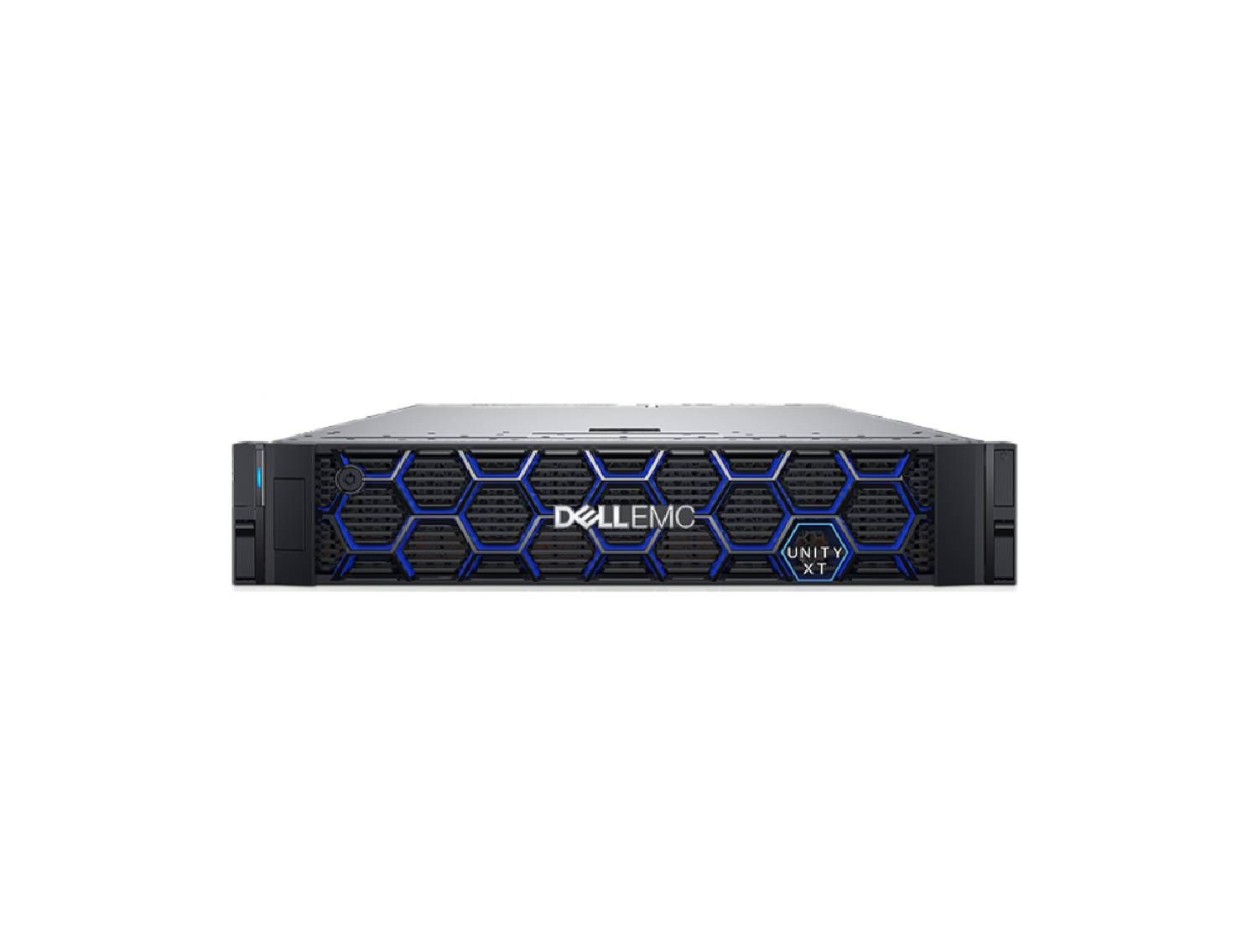

Dell Unity XT 880F Storage

Base Array

• Dell Unity XT 880F All-Flash Unified Storage Array

Benefit: High-performance, NVMe-ready storage for midmarket and enterprise workloads with support for mixed applications and data services without performance overhead.

Chassis & Storage

• 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives
• Min/Max Drives: 6 SSDs or 10 HDDs / Max 1500 drives
• Max Raw Capacity: 16.0 PB

Benefit: Scalable and flexible storage options with Dynamic Pools, high raw capacity, and simplified capacity expansion for business-critical data.

Memory & Cache

• System Memory per Array: 768 GB
• Max FAST Cache per Array: Up to 6.0 TBs
• Total Cache: Up to 6.76 TBs

Benefit: High-capacity memory and cache for accelerated data access and performance-optimized workloads.

Processor

• 2 x dual-socket Intel CPUs, 64 cores per Array, 2.1GHz

Benefit: Powerful multi-core processing for enterprise-grade mixed workloads and high-speed data operations.

RAID & IO Modules

• Max IO Modules per Array: 4
• Embedded SAS IO Ports: 4 x 4 lane 12Gb/s SAS ports for BE connection
• Base 12 Gb/s SAS BE Buses: 2 x 4 Lane
• Max 12 Gb/s SAS BE Buses: 6 x 4 Lane; or 2 x 4 lane and 2 x 8 lane
• Max FE Total Ports: 24

Benefit: Reliable high-speed connections for uninterrupted access to all drives and hosts.

Operating System & Management

• Unified management of block, file, and VMware vVol storage objects
• Built-in encryption and point-in-time snapshots
• Local and remote replication supported
• CloudIQ proactive monitoring and predictive analytics

Benefit: Simplified operations with intelligent monitoring, multi-cloud readiness, and secure data management.

Power & Expansion

• AC Line Current: 14.41 A max at 100 VAC; 7.2 A max at 200VAC
• Power Consumption: 1440.77 VA (1411.96 W) max at 100 VAC; 1440.77 VA (1411.96 W) max at 200 VAC
• Heat Dissipation: 5.08 x 10⁶ J/hr, (4,818 Btu/hr) max
• AC Inlet Type: IEC320-C14 appliance coupler per power zone

Benefit: Optimized energy efficiency for enterprise storage deployment.

Dimensions & Physical

• Weight: 25.90 kgs / 57.10 lbs (empty)
• Vertical Size: 2 NEMA units
• Height: 8.72 cm / 3.43 in
• Width: 444.72 cm / 17.61 in
• Depth: 79.55 cm / 31.32 in

Benefit: Standardized 2U form factor for easy integration into existing data center racks.

Recommended Support

• Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support.
• Consulting and deployment offerings are also available.
• Contact your Dell representative today for more information.
• Availability and terms of Dell Services vary by region.
