Base |

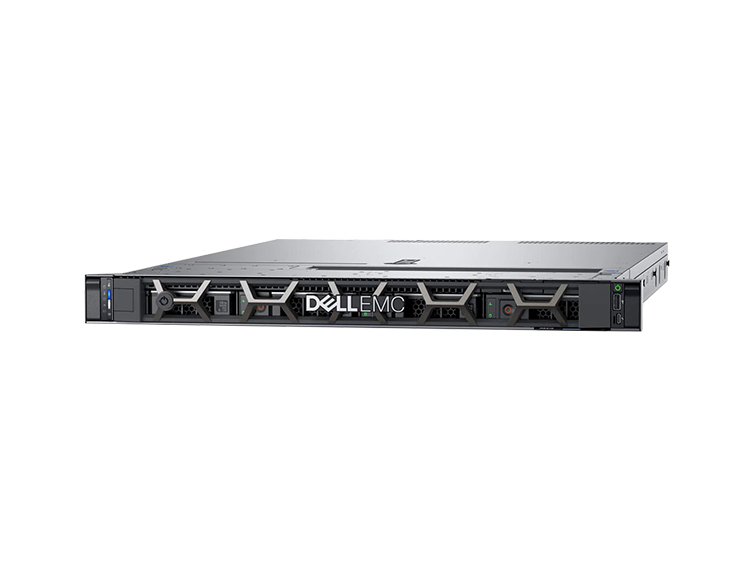

PowerEdge R6515 Server
|
Front Storage |
Chassis with up to 4x2.5" Drives
|
Trusted Platform Module |
No Trusted Platform Module
|
Chassis |
2.5" Chassis with up to 8 Hot Plug Hard Drives
|
Processor |
AMD EPYC 7443P 2.85GHz, 24C/48T, 128M Cache (200W) DDR4-3200
|
Processor Thermal Configuration |
Heatsink for CPU equal to or greater than 180W |
Memory Configuration Type |
Performance Optimized |
Memory DIMM Type and Speed |
3200MT/s RDIMMs |
Form Factor |
1U Rack Server |
Memory |
16GB RDIMM, 3200MT/s, Dual Rank
|
RAID |
C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers |
HBA330 Mini |
Storage |
480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD |
BIOS and Advance System Configuration |
Power Saving BIOS Setting |
Advance System Configuration |
No Energy Star |
Fans |
Standard Fan |
Power Supply |
Single, Hot-plug Power Supply (1+0), 550W |
Power Cords |
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser |
No PCle Riser |
Motherboard |
PowerEdge R6515 Motherboard, with 2 x 1Gb Onboard LOM (BCM5720)MLK |
Bezel |
No Bezel for x4 and x8 chassis |
Boot Optimized Storage Cards |
None |
Operating System |
No Operating System |
OS Media Kits |
No Media Required |
Embedded Management Systems |
iDRAC9, Express 15G |
Quick Sync |
No Quick Sync |
Password |
iDRAC,Factory Generated Password |
IDRAC Service Module |
iDRAC Service Module (ISM), NOT Installed |
Group Manager |
iDRAC Group Manger, Disabled |
Rack Rails |
No Rack Rails or Cable Management Arm |
Internal Optical Drive |
No Internal Optical Drive |
