| Base |

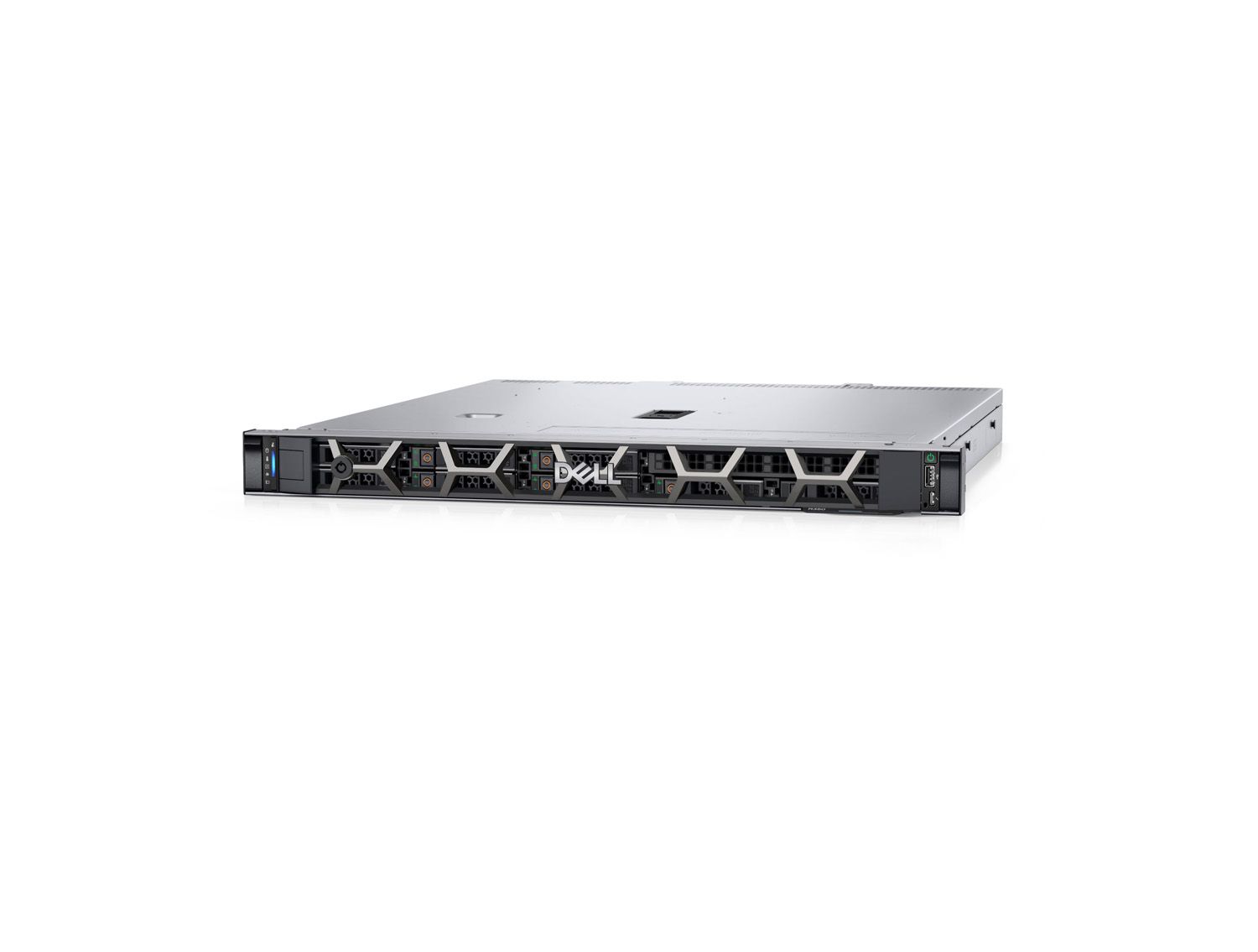

PowerEdge R350 Server
|
| Trusted Platform Module |
No Trusted Platform Module
|
| Chassis |
3.5" Chassis with up to 4 Hot Plug Hard Drives and Software RAID
|
| Processor |
Intel® Pentium G6405T 3.5GHz, 4M Cache, 2C/4T, No Turbo (35W), 2666 MT/s
|
| Processor Thermal Configuration |
Heatsink for 80W or less CPU |
| Memory Configuration Type |
Performance Optimized |
| Memory DIMM Type and Speed |
3200MT/s UDIMM |
| Form Factor |
1U Rack Server |
| Memory |
8GB UDIMM, 3200MT/s, ECC
|
| RAID |
C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed) |
| RAID Internal Storage Controllers |
No Controller |
| Storage |
1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug |
| BIOS and Advance System Configuration |
Performance BIOS Setting |
| Advance System Configuration |
UEFI BIOS Boot Mode with GPT Partition |
| Power Supply |
Single, Hot-Plug, Power Supply (1+0), 600W |
| Power Cords |
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
| PCLe Riser |
No PCLe Riser |
| Additional Network Cards |
On-Board Broadcom 5720 Dual Port 1Gb LOM |
| Bezel |
No Bezel |
| Boot Optimized Storage Cards |
No BOSS Card |
| Operating System |
No Operating System |
| OS Media Kits |
No Media Required |
| Embedded Management Systems |
iDRAC9, Basic 15G |
| Password |
iDRAC,Factory Generated Password, No OMQR |
| IDRAC Service Module |
iDRAC Service Module (ISM), NOT Installed |
| Group Manager |
iDRAC Group Manger, Disabled |
| Rack Rails |
No Rack Rails or Cable Management Arm |
| Internal Optical Drive |
No Internal Optical Drive for 2/4 HD Chassis |
