    Product Information

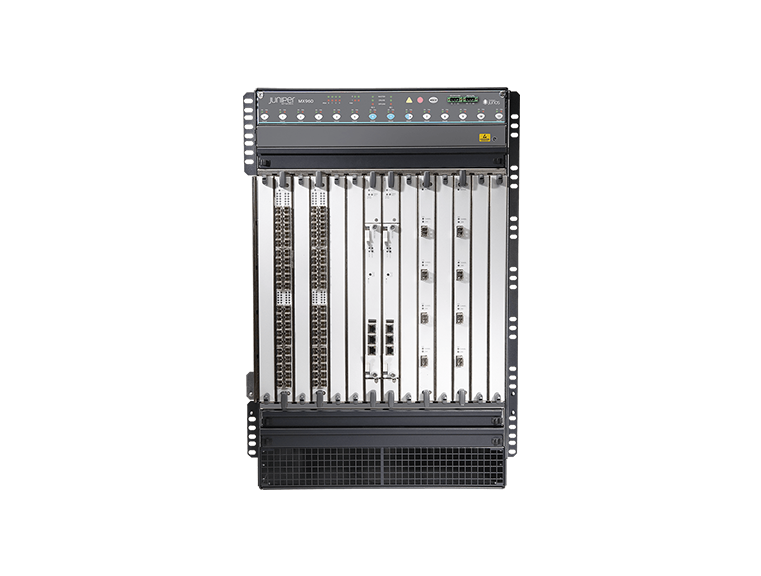

    The MX960 5G Universal Routing Platform is an Ethernet-optimized edge router that provides both switching and carrier-class Ethernet routing. The MX960 router enables a wide range of business and residential applications and services, including high-speed transport and VPN services, next-generation broadband multiplay services, high-speed Internet and data center internetworking.

    The MX960 chassis provides redundancy and resiliency. The hardware system is fully redundant, including power supplies, fan trays, Routing Engines, and Switch Control Boards.

    The MX960 router is 16 rack units (U) tall. Three routers can be stacked in a single floor-to-ceiling rack, for increased port density per unit of floor space. The router provides 14 slots that can be populated with 11 or 12 Dense Port Concentrators (DPCs) or Modular Port Concentrators (MPCs), six Flexible PIC Concentrators (FPCs), and two Switch Control Boards (SCBs) in nonredundant fabric configurations.

    Fully populated, the MX960 router provides an aggregate switch fabric capacity of up to 10.56 Tbps, with line-rate throughput on 264 10-Gigabit Ethernet ports, 22 100-Gigabit Ethernet and 44 10-Gigabit Ethernet ports and 66 40-Gigabit Ethernet ports.

    Several types of DPCs are available. Each DPC includes either two or four Packet Forwarding Engines (PFE). Each PFE enables a throughput of 10 Gbps.

    Up to two PICs can be installed in each FPC. Fully populated, the MX960 supports up to 12 PICs.

    EX2300-C
    EX2300-C
    EX2300-C

    High Scale and Density: Scales through 12 Tbps with support for 24 400GbE interfaces and 120 100GbE interfaces, to provide long-term investment protection.

    Space Efficient: Offers excellent ratio of size to capacity and density, bringing new efficiency to a variety of applications.

    Rich MultiService Edge Features: Supports BNG, business edge, consumer edge, peering, SDN gateway, data center and cloud edge, and metro aggregation functions.

    Service Integration: Integrates many services—including carrier-grade NAT, stateful firewall, and deep packet inspection—in a single platform, to address a wide range of applications and support efficient network and service consolidation.

    SDN-Enabled: Integrates seamlessly with standards-based SDN controllers such as the Contrail Cloud platform, making the MX960 an ideal anchor point for service chains that include physical and virtual elements.

    Built-In Encryption: Draws on best-in-class Juniper Trio 5 silicon to perform MACsec encryption without sacrificing performance.
