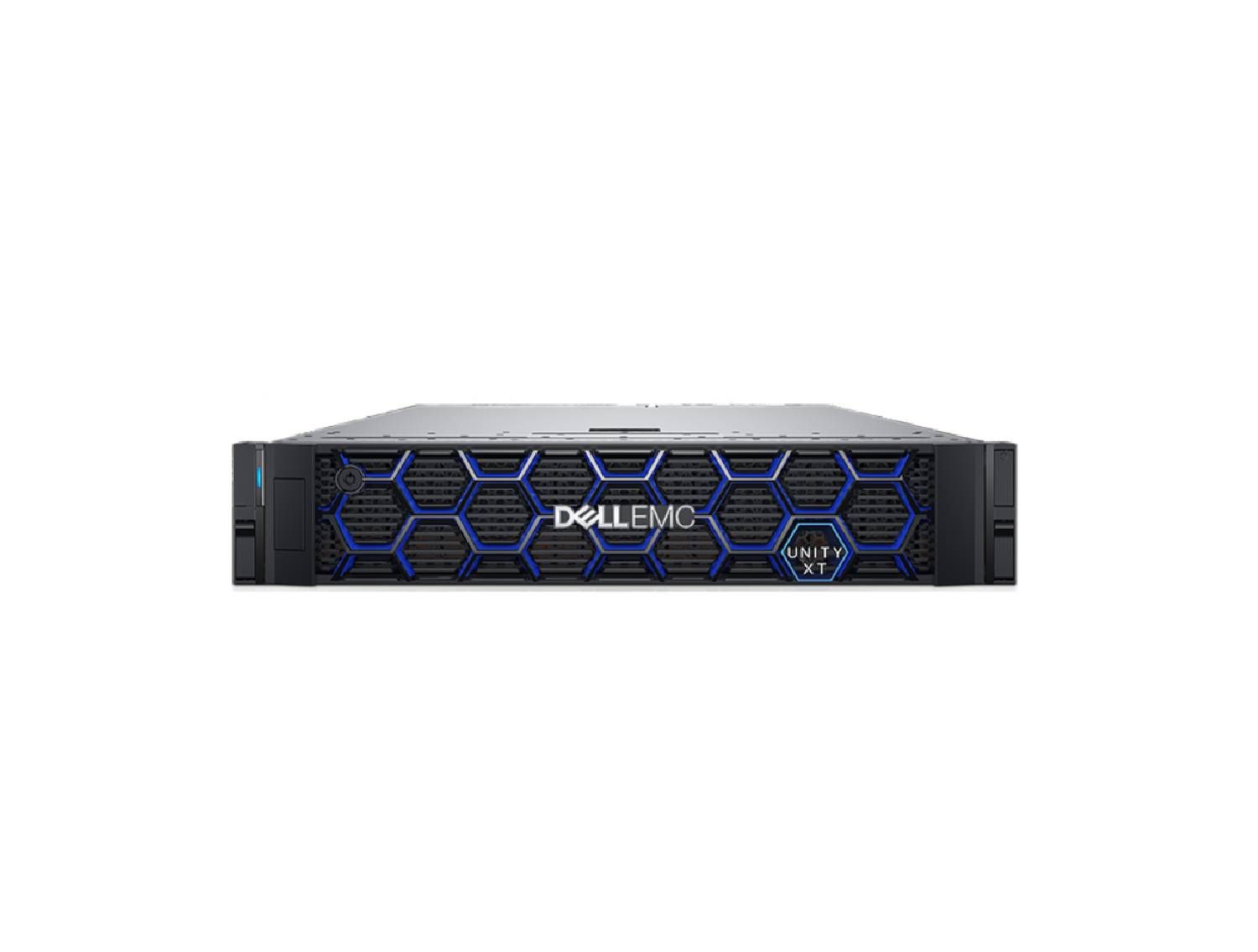

Dell Unity XT 480F Storage

Base Array

• Dell Unity XT 480F All-Flash Array

Benefit: High-performance, NVMe-ready unified storage optimized for midrange workloads and mixed application performance.

Chassis & Storage

• 2U Disk Processor Enclosure (DPE) with twenty-five 2.5” drives
• Min/Max Drive Count: 6 SSDs or 10 HDDs / Max 750 drives

Benefit: Flexible storage configuration supporting high-density, high-capacity deployment for growing data needs.

Memory & Cache

• 192 GB system memory per array
• Max FAST Cache per array: 1.2 TB
• Total Cache: 1.39 TB

Benefit: High-speed caching and large memory capacity for accelerated application performance.

Processor

• 2 x dual-socket Intel CPUs, 32 cores per array, 1.8GHz

Benefit: Multi-core processing to handle demanding mixed workloads efficiently.

Connectivity & IO

• Max IO Modules per array: 4
• Embedded SAS IO Ports: 4 x 4 lane 12Gb/s SAS for back-end
• Base 12 Gb/s SAS BE Buses per Array: 2 x 4 Lane
• Max 12 Gb/s SAS BE Buses per Array: 6 x 4 Lane or 2 x 4 + 2 x 8 lane
• Max FE Total Ports: 24
• Max FC Ports per Array: 16
• 1Gb iSCSI Max Total Ports: 24
• 10/25 GbE iSCSI Max Total Ports: 24

Benefit: High-speed connectivity and versatile IO options for seamless integration into SAN or LAN environments.

Storage Capacity & Virtualization

• Max Raw Capacity: 4.0 PB
• Max SAN Hosts: 1024
• Max Pools: 30
• Max LUNs per Array: 1,500
• Max File Systems per Array: 1,500
• Max File System Size: 256 TB
• IOPS (All Flash Models 380F – 880F): up to 1.68M

Benefit: Large-scale storage with guaranteed performance for mission-critical workloads and virtualization.

Power & Expansion

• AC Line Current (max): 10.6 A at 100VAC; 5.3 A at 200VAC
• Power Consumption (max): 1060 VA / 1050 W
• Heat Dissipation (max): 3.78 x 10^6 J/hr (3,581 Btu/hr)
• AC Inlet Type: IEC320-C20 appliance coupler per power zone

Benefit: Energy-efficient power design with reliable heat management and flexible deployment.

Dimensions & Weight

• Weight: 25.90 kgs / 57.10 lbs (empty)
• Vertical Size: 2 NEMA units
• Height: 8.72 cm / 3.43 in
• Width: 44.72 cm / 17.61 in
• Depth: 79.55 cm / 31.32 in

Benefit: Compact 2U footprint for efficient data center deployment with minimal space usage.

Recommended Support

• Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for Unity XT 480F.
• Consulting and deployment offerings are also available.
• Contact your Dell representative today for more information.
• Availability and terms of Dell Services vary by region.
