Processor |
- Two 5th Gen Intel® Xeon® Scalable processors with up to 64 cores per processor |
|
- Two 4th Gen Intel® Xeon® Scalable processors with up to 56 cores per processor |
Operating System |
- Canonical® Ubuntu® Server LTS |
|
- Red Hat® Enterprise Linux |
|
- SUSE Linux Enterprise Server |
|
- VMware ESXi |
Chipset |
Intel® C741 chipset |
Accelerators |
- 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs with NVIDIA NVLink |
|
- 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs with NVIDIA NVLink |
|
- 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity |
Memory |
- DIMM Speed: Up to 5600 MT/s (5th Gen Intel® Xeon®) or up to 4800 MT/s (4th Gen Intel® Xeon®) |
|
- Memory Type: RDIMM |
|
- Memory Module Slots: 32 DDR5 DIMM slots |
|
- Maximum RAM: RDIMM 4 TB max |
Storage |
- Front Bays: Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives (max 122.88 TB) |
|
- Up to 16 x E3.S NVMe direct drives (max 122.88 TB) |
Storage Controllers |
- Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1) with HWRAID 1, 2 x M.2 SSDs |
|
- Software RAID: S160 |
Security |
- Cryptographically signed firmware |
|
- Data at Rest Encryption (SEDs with local or external key mgmt) |
|
- Secure Boot, Secured Component Verification (Hardware integrity check) |
|
- Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
|
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Management |
- Embedded / At-the-Server: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module |
|
- Consoles: CloudIQ for PowerEdge plug-in, OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin |
|
- Tools: Dell System Update, Dell Repository Manager, Enterprise Catalogs, iDRAC RESTful API with Redfish, IPMI, RACADM CLI |
|
- OpenManage Integrations: BMC Truesight, OpenManage Integration with ServiceNow |
Power Supplies |
- 3200W Titanium 277 VAC or 260-400 VDC, hot swap redundant |
|
- 2800W Titanium 200-240 VAC or 240 VDC, hot swap redundant |
Fans |
- Up to 6 High performance (HPR) gold grade fans installed in mid tray |
|
- Up to 10 High performance (HPR) gold grade fans installed on the rear of the system |
|
- All fans are hot swap |
Ports |
- Network Options: 1 x OCP 3.0 (optional), 2 x 1GbE LOM (optional) |
|

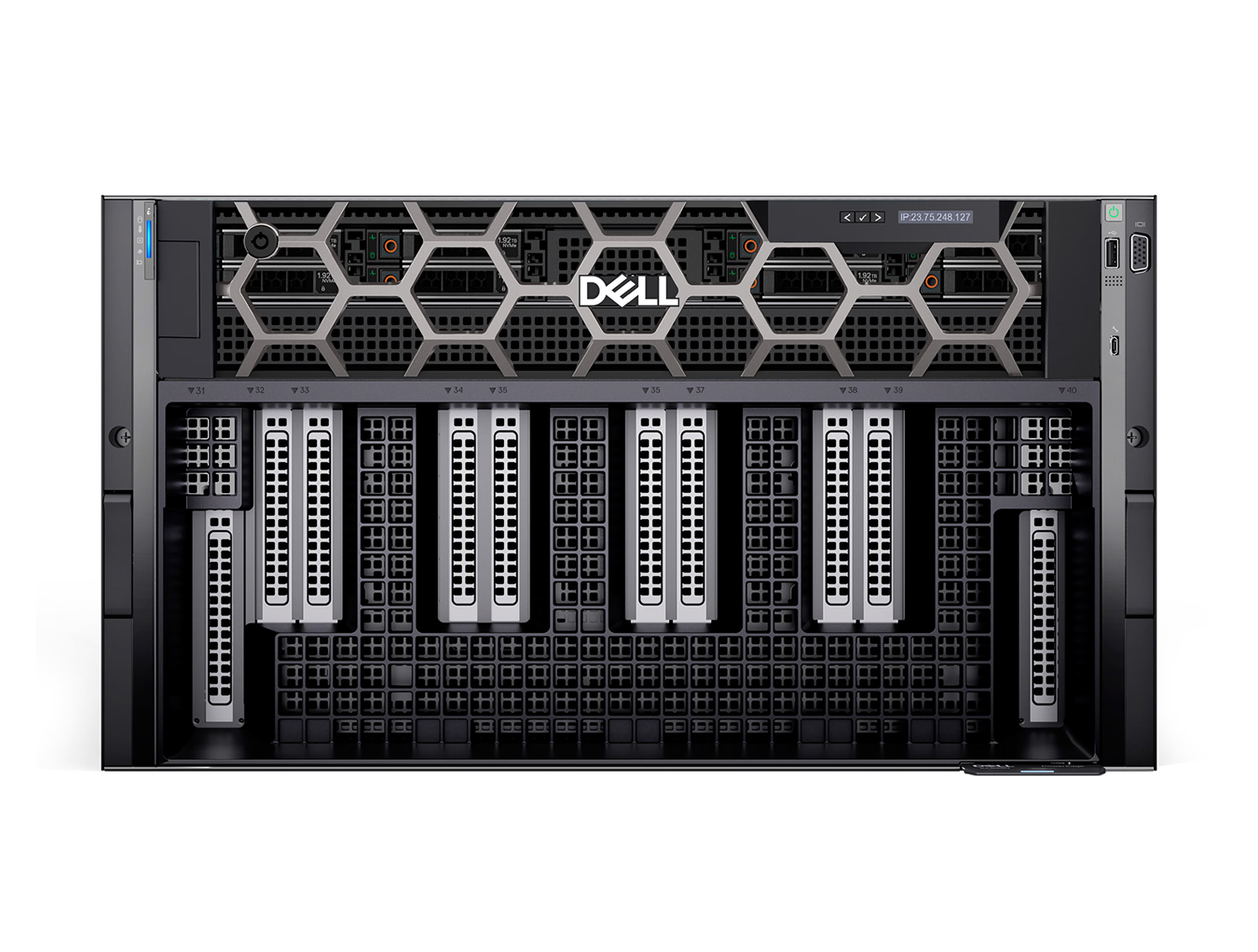

- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA |
|

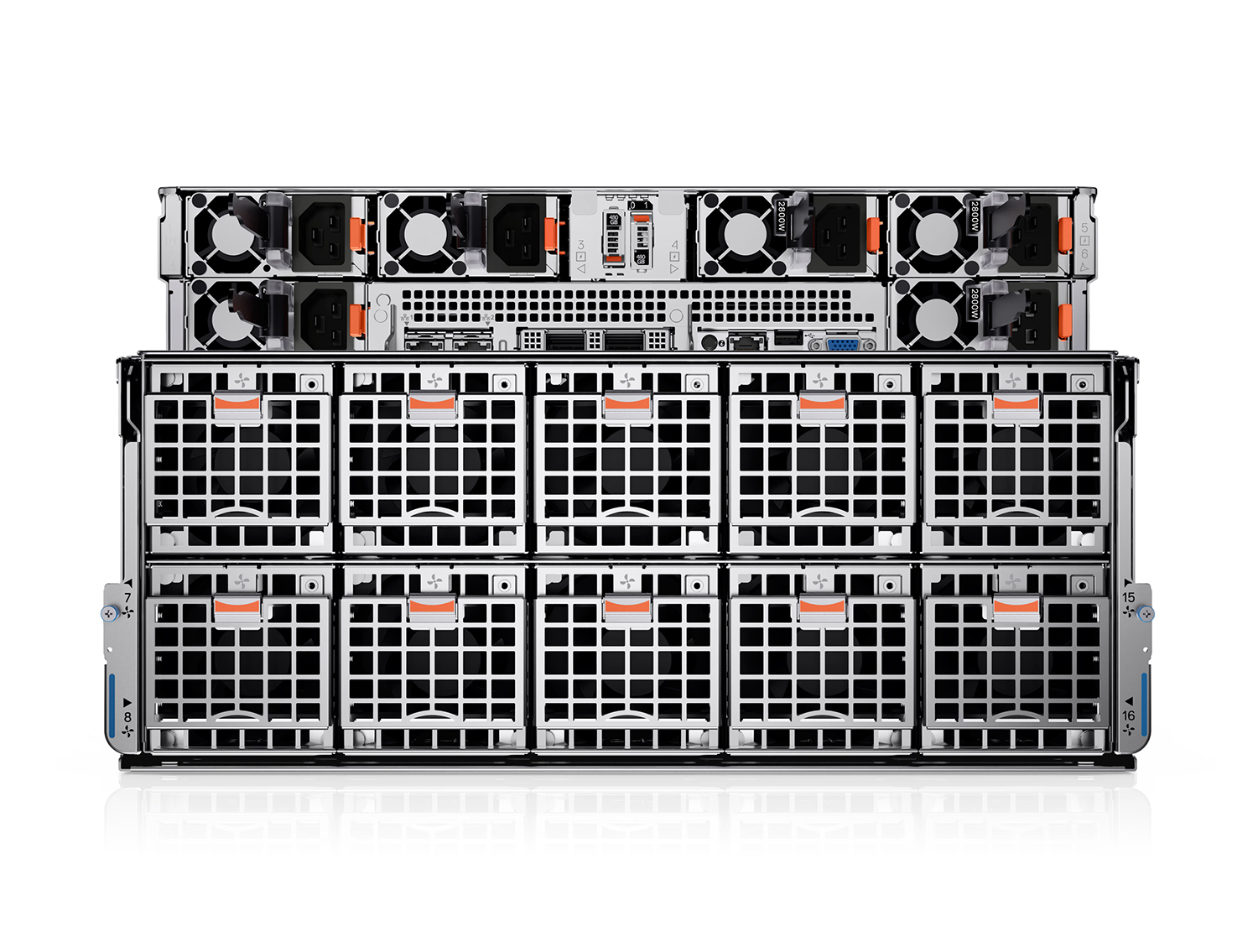

- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x RJ45 iDRAC9 ethernet port |
Slots |
Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length |
Bezel |
Optional LCD bezel or security bezel |
Form Factor |
6U rack server |
Dimensions & Weight |
- Height: 10.36 in. (263.20 mm) |
|
- Width: 18.97 in. (482.00 mm) |
|
- Depth: 39.71 in. (1008.77 mm) with bezel, 39.17 in. (995.00 mm) without bezel |
|
- Weight: up to 249.8 lb (113.30 kg) |
Recommended Support |
Dell ProSupport Plus or Dell ProSupport |
Regulatory |
Dell Regulatory Compliance Home Page, Dell and the Environment |
