Base |

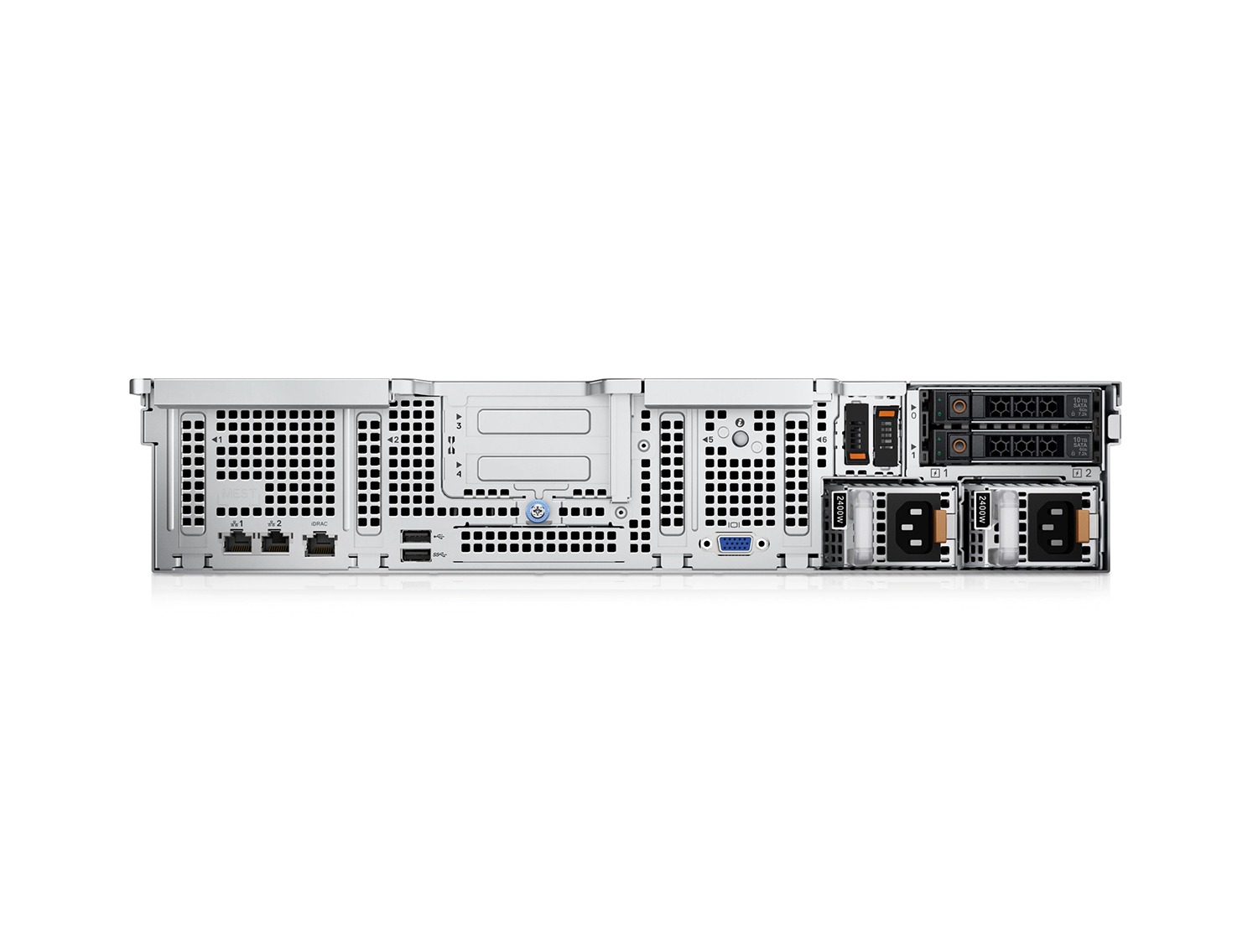

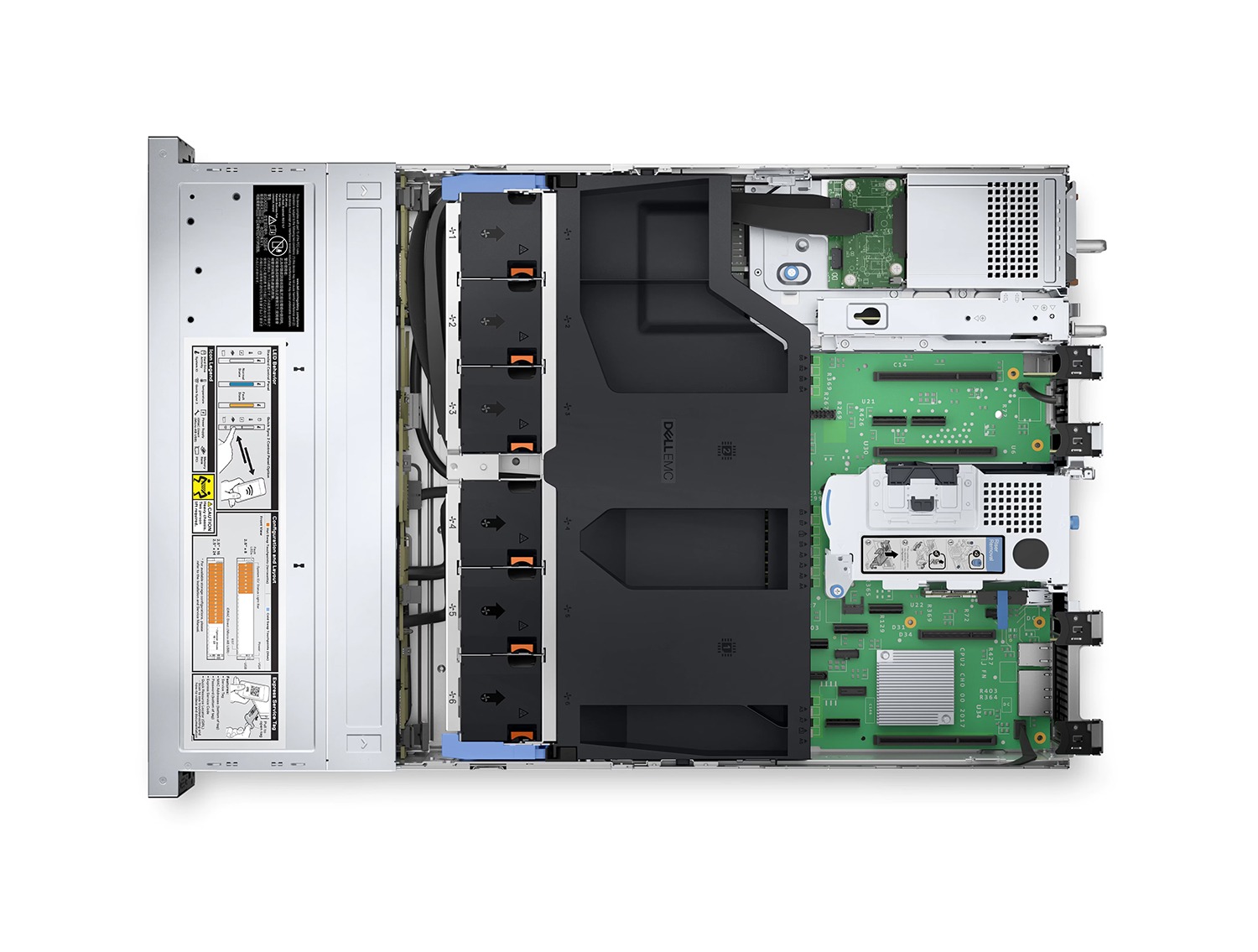

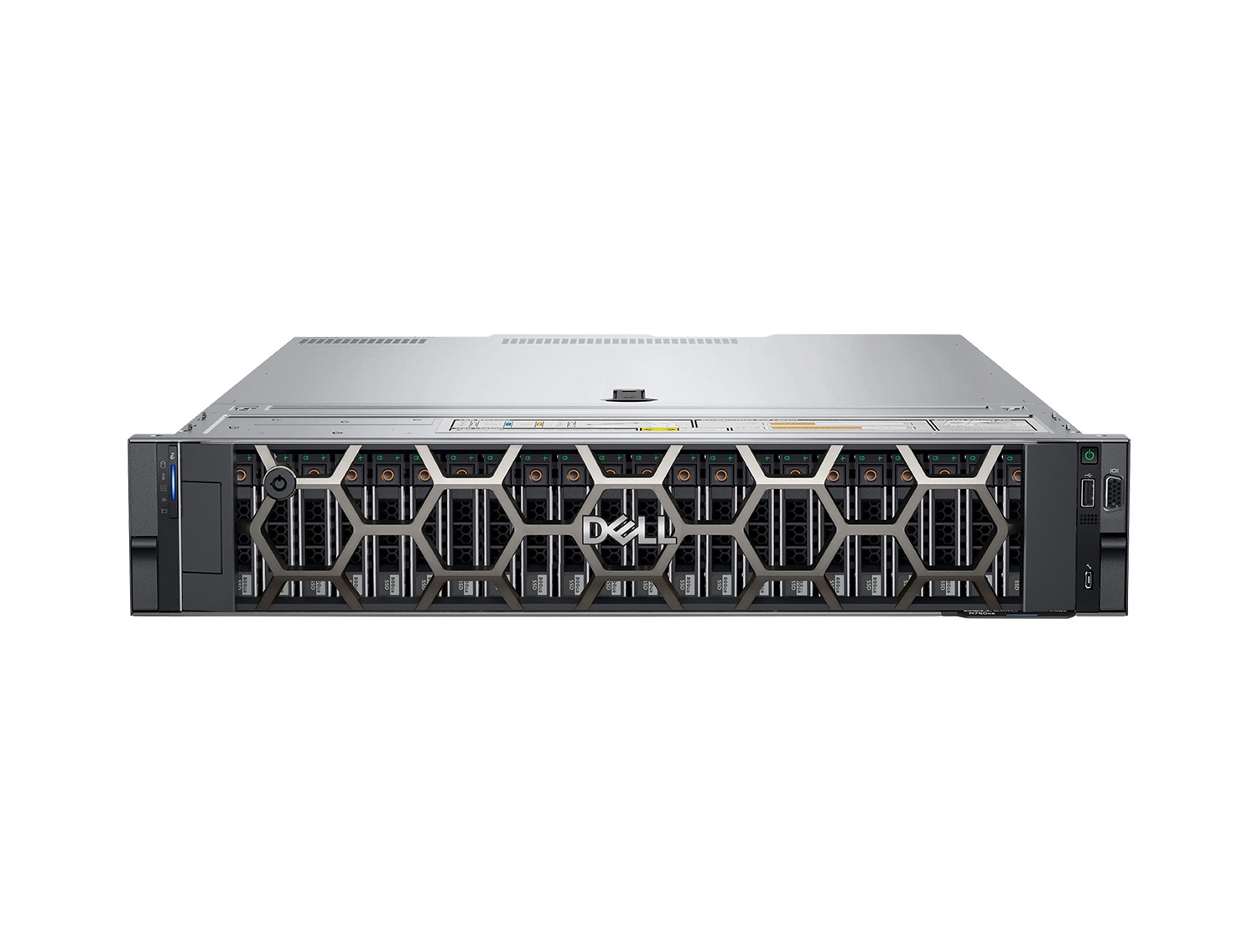

PowerEdge R750XS Server
|
Front Storage |
Chassis with up to 8x3.5" Drives
|
Trusted Platform Module |
No Trusted Platform Module
|
Chassis |
3.5" Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
|
Processor |
Intel® Xeon® Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
|
Processor Thermal Configuration |
Standard Heatsink for 1 CPU configuration |
Memory Configuration Type |
Performance Optimized |
Memory DIMM Type and Speed |
3200MT/s RDIMMs |
Form Factor |
2U Rack Server |
Memory |
16GB RDIMM, 3200MT/s, Dual Rank
|
RAID |
C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
RAID Internal Storage Controllers |
Front PERC H755 Rear Load |
Storage |
2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug |
BIOS and Advance System Configuration |
Power Saving Dell Active Power Controller |
Advance System Configuration |
UEFI BIOS Boot Mode with GPT Partition |
Fans |
Standard Fan x5 |
Power Supply |
Single, Hot-Plug, Power Supply (1+0), 600W |
Power Cords |
NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America |
PCLe Riser |
Riser config 4, Half Length, Low Profile, 1x16 + 1x4 slots, 1 CPU |
Bezel |
No Bezel |
Boot Optimized Storage Cards |
No BOSS Card |
Operating System |
No Operating System |
OS Media Kits |
No Media Required |
Quick Sync |
No Quick Sync |
Password |
iDRAC,Legacy Password |
IDRAC Service Module |
iDRAC Service Module (ISM), NOT Installed |
Group Manager |
iDRAC Group Manger, Enabled |
Rack Rails |
No Rack Rails or Cable Management Arm |
